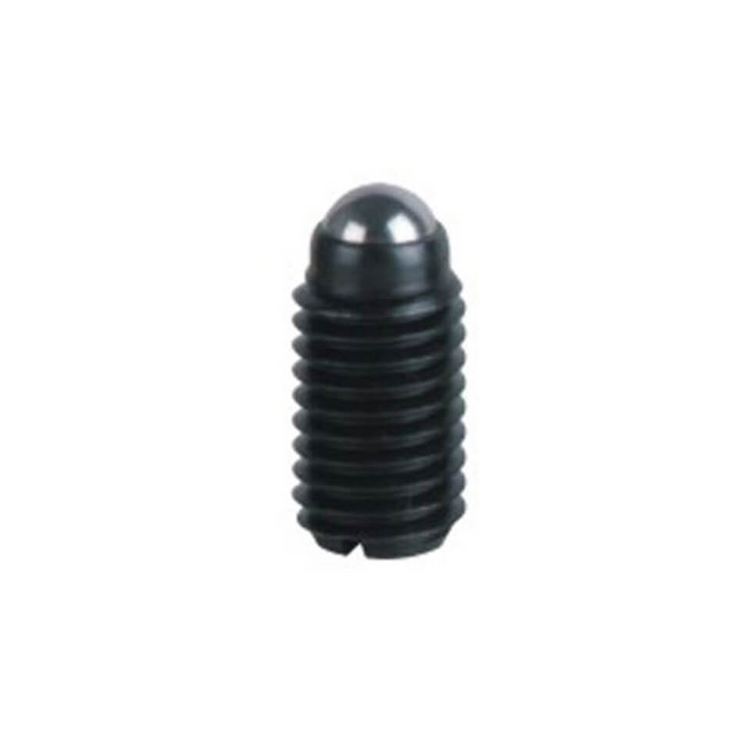

Ball Plunger

Product Name:◕Ball Plunger◕

Shaping Mode: Plastic Molding Die

Material:JIS S45C

Hardness:HV32°

A ball plunger features the use of a ball at the top. When pressure is applied, the ball sinks, thus compressing the enclosed spring. When pressure is removed, the compressive forces of the spring push the ball back up to its original position.

All ball plungers have a ball. The ball has a shallow depth, meaning it’s not capable of sinking very far. This shallow depth, however, allows ball plungers to easily change position under pressure. They will quickly sink under light loads, and they will quickly return to their original position when the load is removed.

• Position: On the one hand you have the ball plunger and on the other a slot or hole is made in which you will seat the ball of the plunger once it is centered.
• Apply pressure: Either to activate a lever or stop on a tooth of a gear, the ball plunger can be used in these applications that require force of pressure.
• Support: They also help to “push” the material so that it’s positioned at a certain point.
• Braking: It helps to “Brake” the force applied to a piece.
• Eject: In material forming applications, the ball plungers can help return the material for easy extraction.
• Locking: Slots can be placed in different points that with the help of the ball plunger can keep the piece in a single place.

Dongguan City Ruida Precision Technology Co., Ltd is a professional manufacturer of metal molds and plastic mold accessories. It is through the unremitting efforts of all employees that our company has developed rapidly over the years. We served for customers more than 30 countries around the world. The product range covers hardware stamping, plastics, electrical appliances, automobiles, stationery, cosmetics and other equipment parts and non-standard fixture parts.

In the face of fierce competition and challenges in the mould market, the company has introduced a series of advanced production equipment, and constantly strengthened quality management capabilities, implemented the ISO9001: 2000 quality management system to improve product quality. At the same time, the company has advanced testing equipment: Two-dimensional image measuring instrument, altimeter, projector, tool microscope, hardness tester, etc.

With the support and cooperation of friends from all walks of life,Dongguan City Ruida Precision Technology Co., Ltd develops steadily. The company will adhere to the management policy of "refined products, quality assurance, progress and sustainable operation" provide new and old customers with the best quality, the most timely delivery and good after-sales service, and give back the spirit of serving our customers.

❃Product categories we can provide❃

◮Press die mold Components✔
◮Plastic die mold Components✔
◮Aviation Medical Precision Parts✔
◮Carbide punch & die button✔
◮Automation Mechanical Components✔
◮Cosmetic packaging precision parts✔
◮Fixture accessories✔

◮cooling Series✔

◮Other Non-standard Precision Parts✔
